The heart is an incredible organ that pumps blood throughout the body to deliver oxygen and nutrients to various tissues and organs. The heart is made up of specialized muscle cells called cardiomyocytes, which contract rhythmically to generate the force necessary to pump blood.
The electrical activity of the heart is essential for the proper functioning of this organ. The cardiac action potential is the electrical signal that spreads throughout the heart and coordinates the contraction of the cardiomyocytes.
Cardiac Action Potential
The cardiac action potential is a complex electrical signal that arises due to the movement of ions across the membrane of the cardiomyocytes. The cardiac action potential can be divided into five different phases: phase 0, phase 1, phase 2, phase 3, and phase 4.
During phase 0, the membrane potential rapidly depolarizes due to the influx of sodium ions into the cell. This rapid depolarization leads to the opening of voltage-gated calcium channels during phase 2, which allows the influx of calcium ions into the cell.
The influx of calcium ions prolongs the depolarization phase and leads to the contraction of the cardiomyocyte. During phase 3, the membrane potential rapidly repolarizes due to the efflux of potassium ions out of the cell. Finally, during phase 4, the membrane potential is at a resting state, and the cycle can repeat.

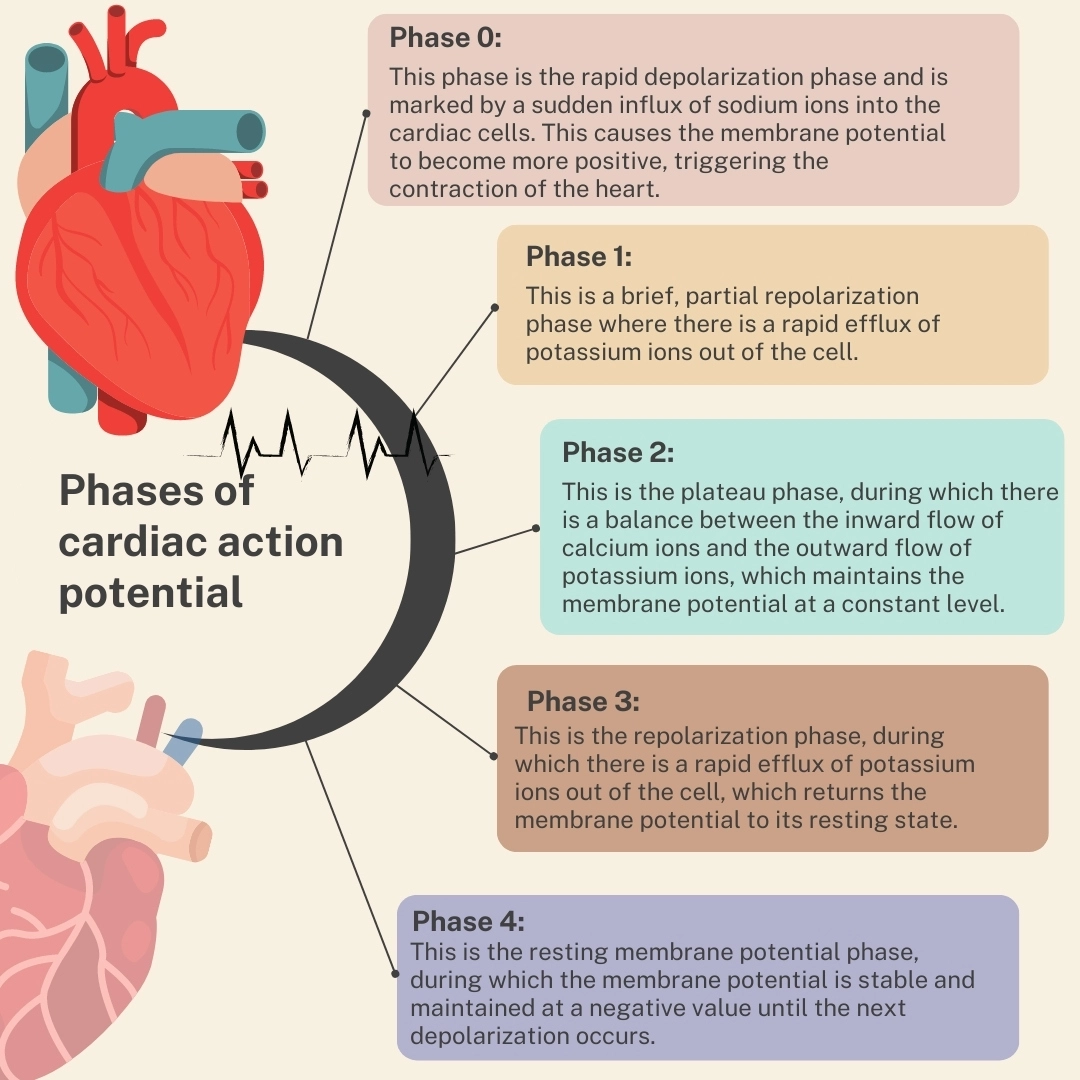

Phases of cardiac action potential
Graded Potential vs Action Potential
A graded potential is when the membrane potential changes in a way that depends on how strong the stimulus is. Graded potentials can either make things less polarized or make things more polarized. Depolarizing graded potentials bring the membrane potential closer to the threshold for an action potential, whereas hyperpolarizing graded potentials take the membrane potential further away from the threshold. Graded potentials can occur in any part of the neuron or muscle cell.
In contrast, an action potential is an all-or-nothing event that occurs when the membrane potential reaches a certain threshold. An action potential is a self-regenerating process that propagates down the axon or spreads across the muscle cell. Unlike graded potentials, the magnitude of the action potential is not dependent on the strength of the stimulus.
Differences between graded Potential and action Potential
|Feature||Graded Potential||Action Potential|
|Type of signaling||Passive||Active|
|Amplitude||Varies with stimulus||All-or-nothing|
|Duration||Short-lived||Brief but self-sustaining|
|Threshold||No fixed threshold||Fixed threshold|
|Location in neuron||Dendrites and cell body||Axon|
|Ion channels involved||Ligand-gated ion channels and/or leakage channels||Voltage-gated ion channels|
|Refractory period||None||Absolute and relative|
|Function||Signal integration||Transmission of signals|
The cardiac action potential is a complex electrical signal that arises due to the movement of ions across the membrane of the cardiomyocytes. The cardiac action potential is essential for the proper functioning of the heart.
Graded potentials and action potentials are two types of electrical signals that occur in neurons and muscle cells. Graded potentials are changes in the membrane potential that are proportional to the strength of the stimulus, whereas action potentials are all-or-nothing events that occur when the membrane potential reaches a certain threshold.
Understanding the difference between graded potentials and action potentials is essential for understanding the electrical activity of the heart and other organs in the body.
