Carburetor means?

A carburetor is a device that converts and mixes air, fuel, and liquid to form gas. Carburetors are located on a car’s engine or other automobiles with an internal combustion engine. They can be simple enough in construction to be one piece, like the Holley 600-Cfm 4 barrel version, or more complex assemblies such as those found on turbocharged engines.

File:Norton Dominator 650 cc cooling fins and carburetor.jpg - Wikimedia  Commons

Image credits, CC License

Regardless of construction, they all have four main components. The bowl, the venturi tube or Venturi, the needle valve seat, and at least one type of vent hole. There is also usually a mechanism in them to add and/or remove fuel and air, which is called the Choke, which is used to prevent too much fuel from being released into the engine because this could cause an engine to misfire.

Carburetor types are?

There are three main types of carburetors: automatic Choke, manual Choke, and chambered. The automatic Choke uses an air valve, so no manual operation is required, while the manual Choke requires a person to operate it. On the other hand, a chamber carburetor uses a mixture of air and fuel that has been placed in chambers.

Fuel flow in Carburetor

The fuel flow is controlled by the amount of fuel injected, with the quantity determined by the throttle. This carburetor was used extensively in aircraft engines but not automobiles. A five-port chambered carburetor has five ports for injecting air and fuel into each cylinder.

Gaskets in Carburetor

Gaskets seal all components of a carburetor. These gaskets work as a piston to create pressure and ensure that no air or fluid leaks away from them when working properly (an air leak will cause the engine to misfire or backfire). If any of the internal parts of a carburetor are damaged or not sealed properly, engine failure will occur. For example, dirty gaskets may cause a leak, resulting in excessive fuel getting into the engine.

Image credits, CC License

The bowl is the area where the fuel and air mix. Fuel flows into this chamber from the fuel line, and it is usually held in place by either an overpressure spring or one made of rubber. When too much pressure is on one side of the spring (usually from an obstruction), it will unseat itself from its seat and allow fuel to flow freely. The Venturi tube connects to the intake manifold on modern cars and has a Venturi section designed to fit around an air filter. It has a flat section around the Venturi, and this is where the throttle plate is located. The throttle plate can be bolted to the Venturi, or it may slide into it.

Needle valve seat in Carburetor

The needle valve seat (recessed seat) is where the needle valve seat pin passes through, controlling the amount of fuel and air that enters the engine. The vent holes usually take the form of slits on one or two sides of a chamber and are made so that air can flow in from outside and fuel can flow out from inside. This allows gas to be mixed with the air, which results in a richer mixture between the two. These holes are usually on the left side of the carburetor. The wider end of one hole is open, while the narrower end of another hole is closed. This arrangement means that only one set of holes will be open at any given time, meaning only half a stroke (one-half revolution) of an engine will allow fuel to flow in and air to exit.

Priming a Carburetor

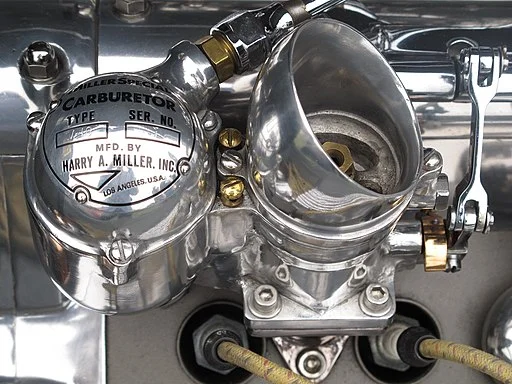

When a carburetor is first started up on a cold day, it may have to be “primed.” Priming a carburetor involves spraying fuel into the intake manifold, where the fuel then passes through the intake valves and into the engine’s cylinders. This is necessary because the fuel must run through the passages in order to warm them up. This allows idling to begin more quickly, as well as allows better fuel efficiency during steady driving.

When an air-fuel mixture enters a carburetor throat and hits a Venturi effect area at the end of it, which is an area of high velocity, pressure drops, and air-fuel flow increases significantly. As the carburetor’s throat contracts under the higher pressure of the Venturi effect area, a jet of high-velocity air is created, causing an increase in back pressure. This higher back pressure turns a crank than turns a needle valve, thereby controlling the amount of fuel injected into the engine. The increased back pressure also raises engine speed. A throttle plate that slides into the Venturi tube allows this motion to control engine speed.

Image credits, CC License

What causes these is largely determined by mechanical and electronic systems within the vehicle. These include such things as ignition timing, carburetor jetting, and troubleshooting circuits. The throttle position sensor and/or the crank sensor send information to the car’s controller, which adjusts the amount of fuel being sent into the engine.

The idle circuit, or idle mixture control, is a mixture of air and gasoline in a certain area of the carburetor. This circuit contains an automatic device that controls or regulates how much air is to be mixed with a certain amount of fuel. The automatic device is controlled directly by a system connected to engine speed and position signals. Throttle position sensors are employed on some vehicles to control engine speed. This means other devices (such as oxygen sensors) are also used for reduced emissions (emissions control).

An ideal mixture of fuel

An ideal mixture of fuel and air is needed for the engine to run smoothly and efficiently. This mixture should provide maximum output from the combustion process while also minimizing emissions from burning too much fuel. The stoichiometric ratio describes this ideal ratio. An internal combustion engine’s efficiency can be improved by approximating this ideal ratio more closely. However, as a result of a variety of factors affecting an engine, it may not be possible to achieve this ideal ratio all the time. In that case, a compromise between these two factors must be made.

Ideal ratio

In order to achieve the ideal ratio, fuel is mixed with the oil in a certain ratio and dispatched via the throttle plate. The amount of fuel injected into the engine and how much air is mixed with it depends on conditions such as engine speed, power output, and air temperature. Throttle position sensors monitor this input and send signals to other systems of the car (such as the electronic throttle control) that tell these systems how fast (and how far) to operate an engine. These other systems then operate various components within a vehicle (such as the injectors or ignition system).

Needle valve and Carburetor

The needle valve is used for adjusting the air/fuel mixture in an internal combustion engine. To allow a more accurate mixture to be supplied, it is connected to the throttle by a pin and cable assembly. This allows it to move so that the mixture will be either too rich or too lean. If the engine is running too lean, for instance, the needle assembly is moved so that fuel will not flow into an engine cylinder until less air flows by then. This provides a more efficient (and cleaner) burn off fuel and better operating conditions for the remaining components in an engine. The engine will run faster and produce more power. If the engine is running too rich, then the needle assembly is adjusted so that fuel will flow into the engine cylinder with air flowing by. This reduces the amount of available oxygen in an engine and creates a richer mixture, which results in a slower burn of fuel and reduced output of an engine.

Throttle plate in Carburetor

The throttle plate is located at the mouth of the carburetor, which opens and closes as instructed by signals sent from other parts of a vehicle. When it opens, it lets (or allows) more air enter while letting less fuel enter; when it closes, less air enters while letting more fuel enter. The amount of fuel and air entering the engine is controlled with another device known as the lean-to-rich switch, which monitors engine speed and position. Various devices that control how fast an engine runs are used to determine this change in air/fuel mixture. This change is sometimes referred to as power delivery.

The throttle plate acts as a control for speed, but it also has another function within a carburetor: It allows fuel flow through a restricted passage. When the throttle plate is fully closed, for instance, there is little or no movement of fuel through a restricted passage in the carburetor body; when it’s fully open, fuel flows freely through this passage.

Choke and airflow

The Choke is a device that allows the engine to start when it’s cold. It is connected to the throttle by a pin and cable assembly. When the air temperature is low, the Choke restricts airflow into an engine, thereby causing an increase in fuel flow. This increased fuel flow causes a richer mixture for easier starting.

When there’s no change in how much air and how much fuel are entering an engine, an equilibrium mixture of these two elements occurs. The stoichiometric ratio of this mixture is used as a benchmark for comparing various mixtures of air/fuel as they enter an engine. For example, if the air-fuel ratio of an engine is 1.25:1, then this is approximately the stoichiometric ratio of what’s going into it.
