Technology in li-iron battery

Lithium-iron batteries (LiFePO4) are a type of rechargeable battery that uses lithium iron phosphate as the cathode material. They are recognized for their high energy density, extended cycle life, and excellent safety performance.

Free Black Android Smartphone on Table Stock Photo

LiFePO4 batteries have been widely used in various applications, including electric vehicles, energy storage systems, and portable electronic devices.

The technology behind LiFePO4 batteries involves the use of a lithium iron phosphate cathode and a graphite anode, separated by a porous membrane. During discharge, lithium ions move from the cathode to the anode, creating an electric current. During charging, the lithium ions move back to the cathode.

LiFePO4 batteries have greater thermal stability, a lower risk of thermal runaway, and superior performance in high-temperature environments compared to other types of batteries.

Additionally, LiFePO4 batteries are lighter and more compact than lead-acid batteries, making them a popular choice for use in mobile applications.

The technology underlying LiFePO4 batteries has advanced significantly in recent years, resulting in significant enhancements in performance and cost. LiFePO4 batteries are likely to play an important role in the energy storage industry in the future, given the growing demand for renewable energy and the need for energy storage systems.

Lithium-ion battery vs lithium iron phosphate battery

Lithium-ion (Li-ion) batteries and lithium iron phosphate (LiFePO4) batteries are both rechargeable batteries that use lithium ions to store energy. There are, however, important differences between the two:

  • Cathode material: The main difference between Li-ion and LiFePO4 batteries is the cathode material. Li-ion batteries typically use a cobalt oxide cathode, while LiFePO4 batteries use a lithium iron phosphate cathode.
  • Energy density: Li-ion batteries have a higher energy density than LiFePO4 batteries, which means they can store more energy in a smaller space.
  • Performance: Li-ion batteries have a higher voltage and a higher energy-to-weight ratio than LiFePO4 batteries, which makes them more suitable for high-performance applications such as electric vehicles. LiFePO4 batteries have better stability and safety performance than Li-ion batteries, which makes them more suitable for use in applications that require a high level of safety, such as energy storage systems.
  • Cycle life: LiFePO4 batteries have a longer cycle life than Li-ion batteries, which means they can be charged and discharged more times before they need to be replaced.
  • Cost: Li-ion batteries are typically more expensive than LiFePO4 batteries due to the higher cost of the cobalt oxide cathode material.

Technology of lead acid battery

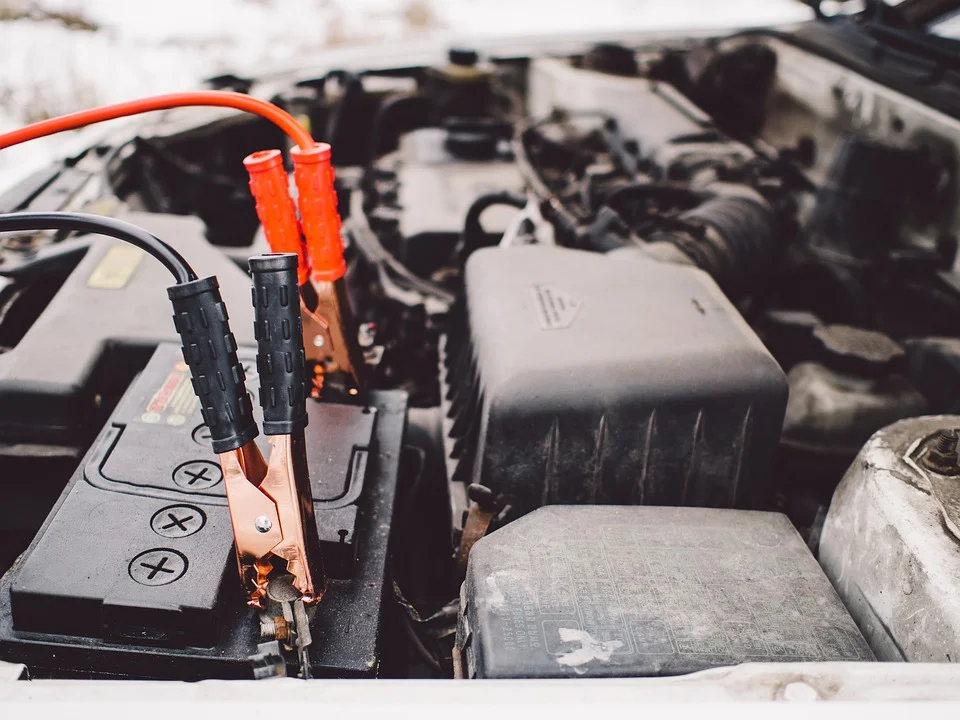

Free Jumper Cables Battery photo and picture

Lead-acid batteries are the oldest type of rechargeable batteries and have been widely used for over 150 years. The technology behind lead-acid batteries involves the use of a lead-based anode and cathode, separated by an electrolyte solution of dilute sulfuric acid.

During discharge, lead sulfate and sulfuric acid are formed at the anode and cathode, respectively. The reaction between sulfuric acid and lead sulfate produces lead and sulfate ions, which flow through the electrolyte solution and generate an electric current. Lead sulfate is converted back to lead and sulfuric acid during charging.

A lead-acid battery consists primarily of:

  • Anode: made of lead or lead-alloy plates that react with the sulfuric acid to form lead sulfate.
  • Cathode: made of lead or lead-alloy plates that react with the sulfuric acid to form lead sulfate.
  • Electrolyte: a dilute solution of sulfuric acid that provides the medium for the flow of ions.
  • Separator: a porous material that separates the anode and cathode and allows the flow of ions while preventing physical contact between the two plates.

Due to their low cost and dependability, lead-acid batteries are widely employed. They are commonly found in applications such as automobiles, electric vehicles, and backup power supplies.

However, they have a limited cycle life and a relatively low energy density, which makes them less suitable for applications that require a large amount of energy storage in a small area.

What is Nickel Cadmium battery?

A nickel-cadmium (NiCad) battery is a type of rechargeable battery that uses nickel oxide hydroxide and metallic cadmium as electrodes. NiCad batteries have a higher energy density and longer shelf life compared to other types of rechargeable batteries.

Due to their ability to withstand a high number of charge and discharge cycles, they are frequently used in portable electronic devices and power tools.

Comparing different types of batteries

Lithium-ion vs LiFePO4 vs Lead acid vs Nickel Cadmium battery

(The table is a general comparison and individual battery specifications may vary.)

Property Lithium Ion Battery Lithium Iron Phosphate Battery Lead Acid Battery Nickel Cadmium Battery
Voltage 3.7V to 4.2V 3.2V 2V 1.2V
Energy Density High Lower than Li-ion Low Medium
Cycle Life 500-1000 cycles 2000-5000 cycles 400-500 cycles 500-1000 cycles
Self-Discharge Rate Low Low High Medium
Operating Temperature Range Wide Narrower than Li-ion Narrow Narrow
Cost High Higher than Li-ion Low Medium
Application Portable Devices Stationary Applications Automotive, UPS Portable Devices
